Design/Construction Details
|| Pyxis Home Page | Dan's Home Page ||
Click on any of these drawings for an enlarged view.
|| Text Listing | Photo Library (Text) ||

|| CAD Home | Design / Construction Details | Storage Projects | Other Projects | PDF Files ||



Interior Layout


Weekender/One Design Layout


Sail Plan


Deck Layout

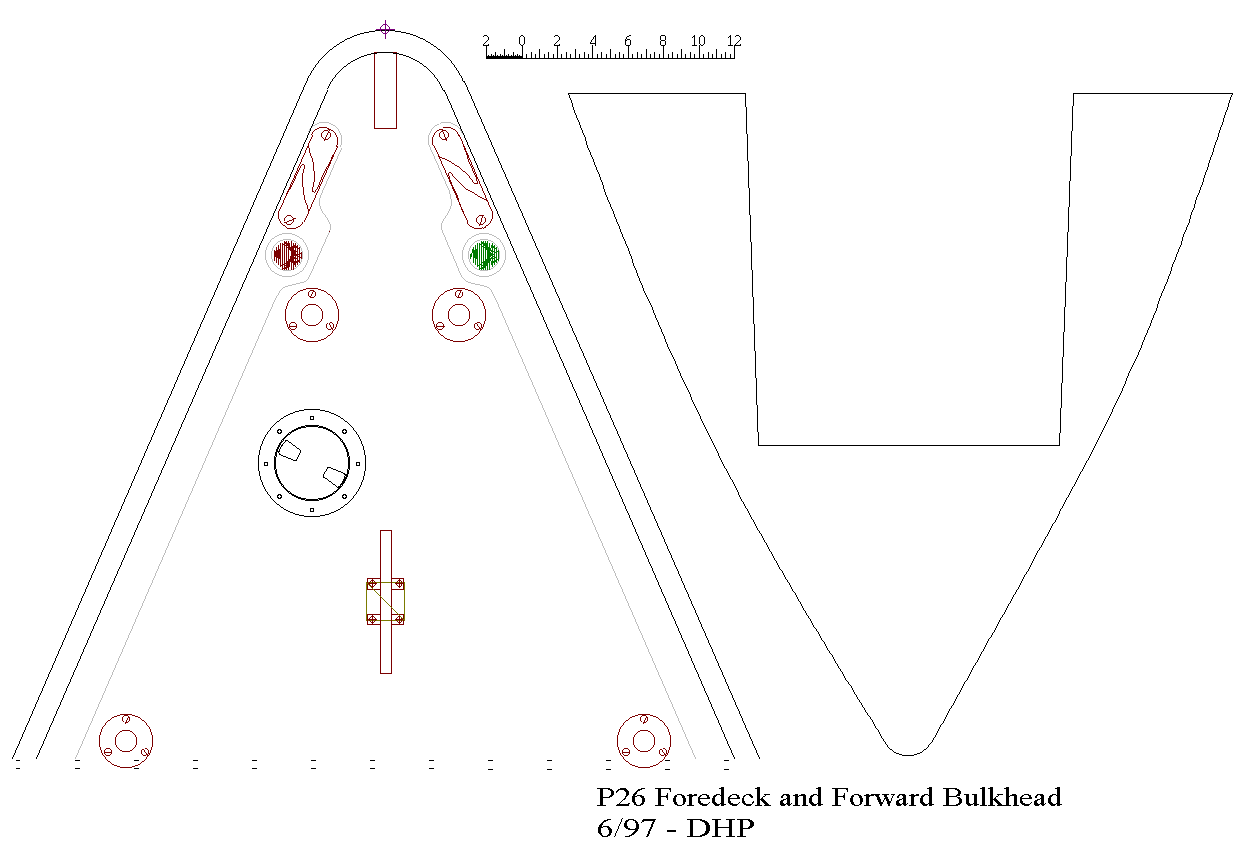

Foredeck and Forward Bulkhead


Keel Dimensions


Keel Cross Section

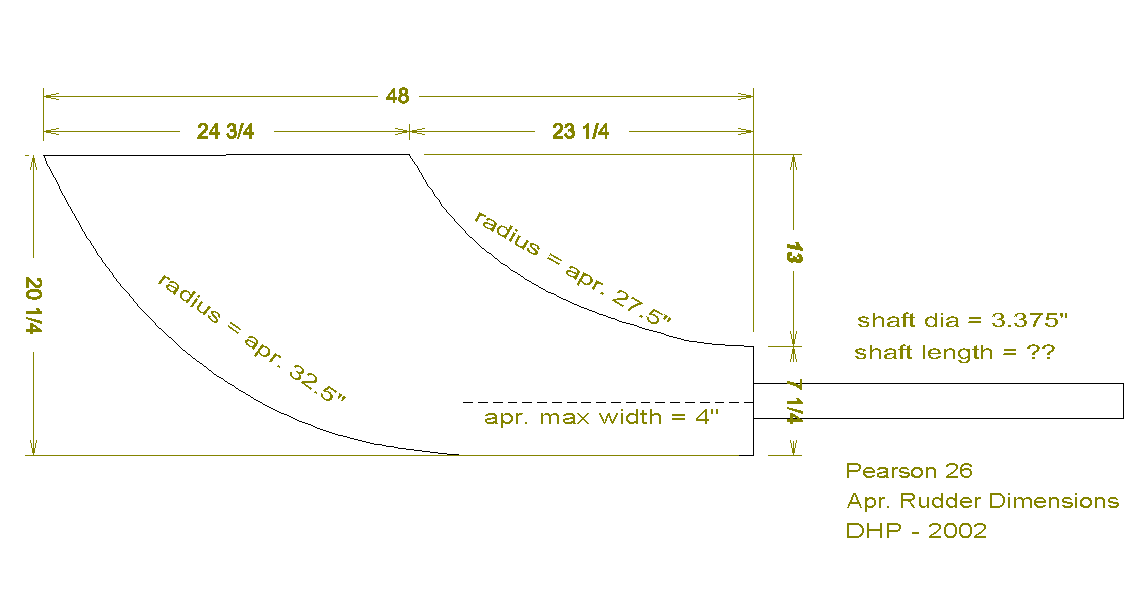

Rudder Dimensions


Rudder Assembly


Hull-Deck Joint


Wiring Track Inside Mast


Cradle


Carpet Pattern


Gooseneck Parts


Typical Spinnaker Setup

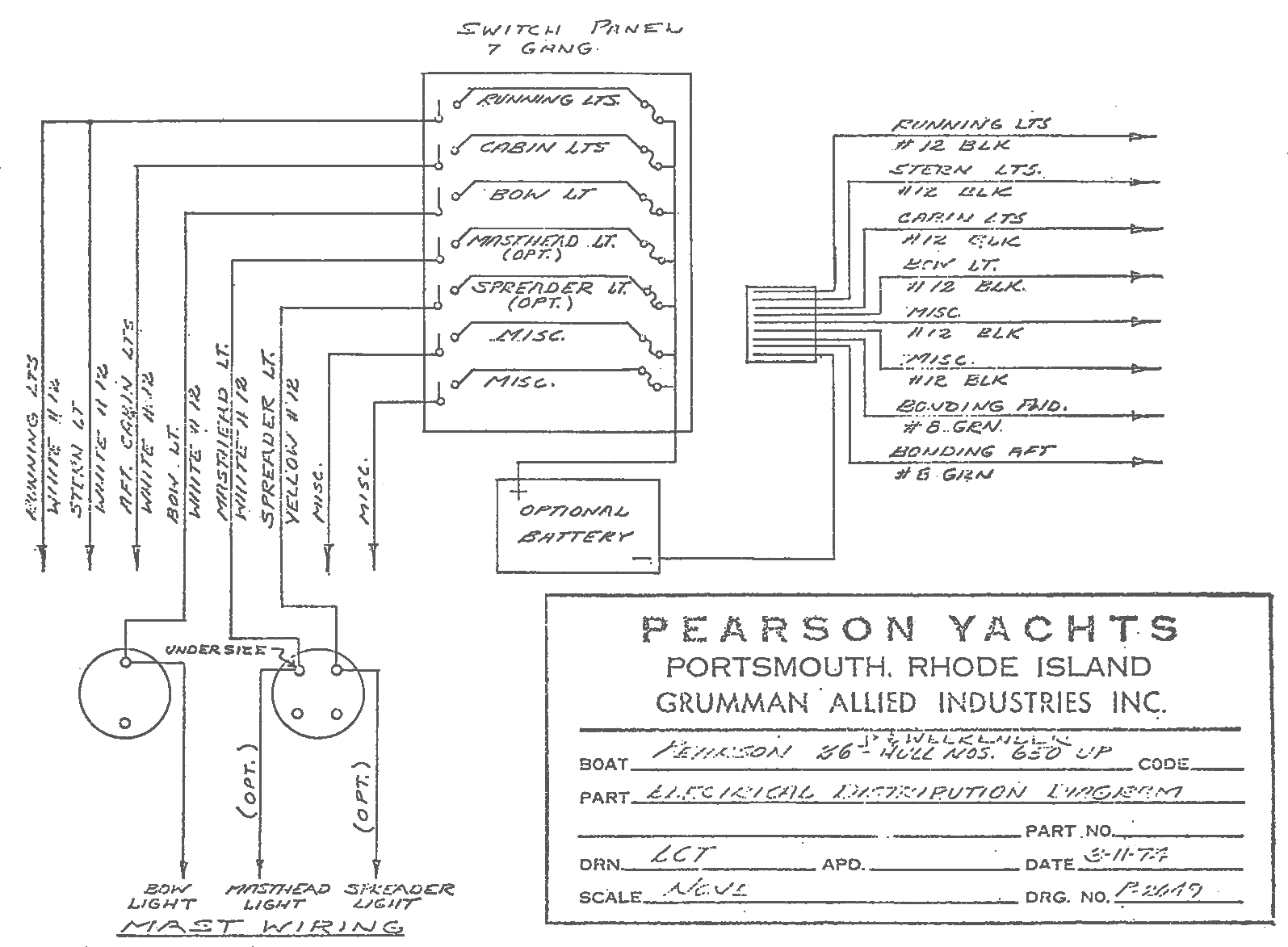

Wiring Diagram #650 & up

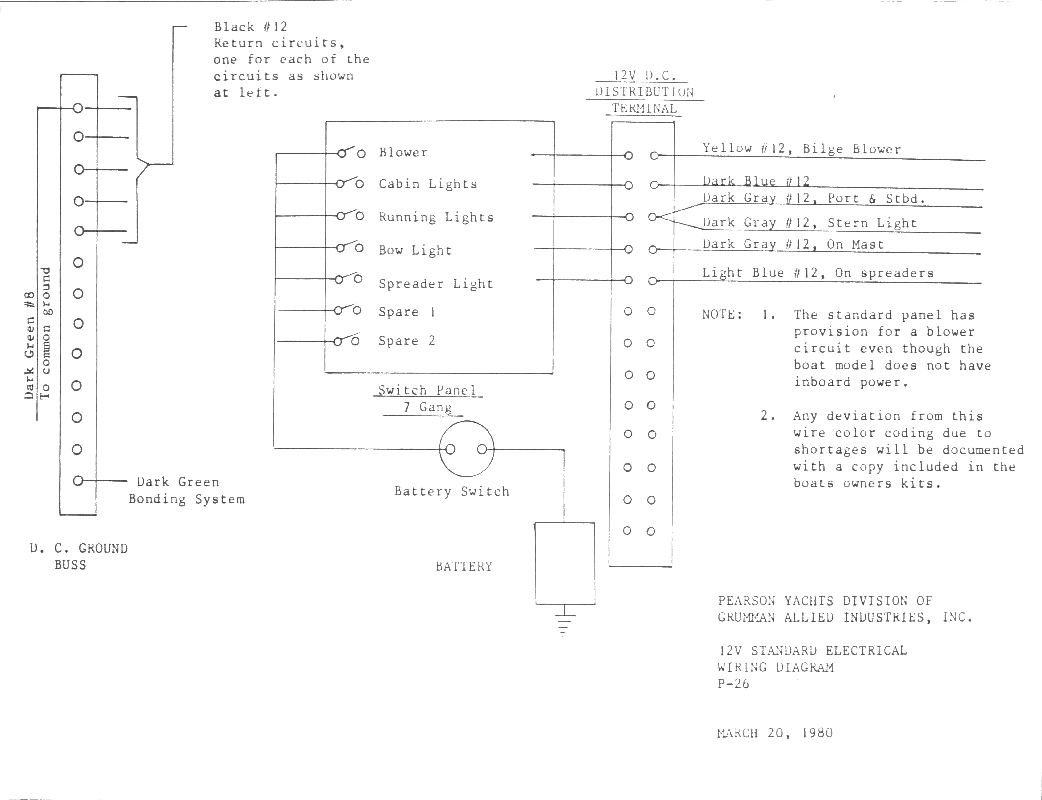

Wiring Diagram 1980


All drawings by Dan Pfeiffer except wiring diagrams
