These photos show the PVC cover frame I built in the fall of '96. The frame is all 3/4" schedule 40 PVC and there are no metal fasteners used. The frame is attached to the T-track with 3-way PVC connectors that I slotted to fit the track. They slide on the track like a car and were easy to make with a hacksaw and a dremel tool with a sanding head. The longest lateral bow is 154". All of the bows that are longer then 10' were spliced together by inserting a 10" slotted 1/2" PVC section. The slot allows it to squeeze into the 3/4" PVC for a snug fit. The longitudinal sections are short pieces connected to the bows with 4-way PVC connectors that I reemed out with the dremel to slide over the bows. (See the Maintenance Log for 11/27/96 - 12/7/96)

---

PVC Cover Frame	T-Track "Car"	From the Bow
PVC Cover Frame	Covered Up	Under Cover

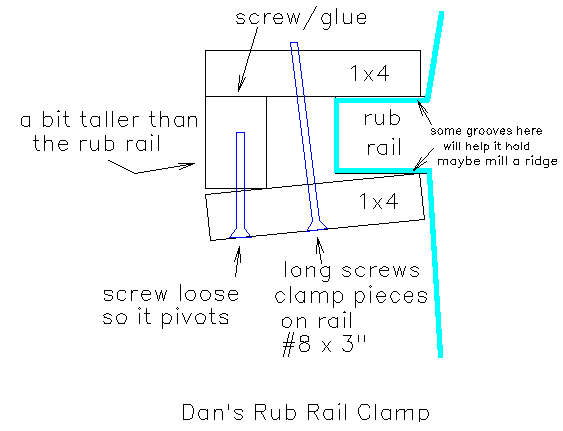

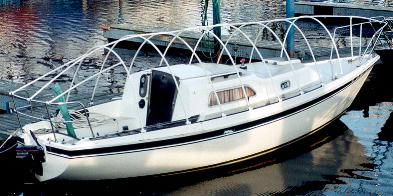

Covered up for '98-'99	Ready to cover '99-'00	Rubrail clamp to attach tarp

---

All photos by Dan Pfeiffer
