Pearson 33
Return to Pearson Info . . . | vanguard | 33 | 33-2
Brochure
1986-91 P33-2
Designer     Shaw   Main Area     228   Hull Speed  6.81
First Year   1970   For Tri       255   SA/D        16.0
Last Year    1975   I            40.4   D/L          282
LOA          32.9   J            12.6   BR           39%
LWL          25.8   P            35.0   L/B         3.29
Beam         10.0   E            13.0   LWL /B      2.58
Disp       10,900   Eng            A4   OR           22%
Draft       4/7.6   Fuel           20   CSF         1.81
Sail Area     492   Water          60   MCR         27.9
Ballast     4,200   Mast Height  44.0   M/F         0.89
                                        PHRF         183
Info on Design Ratios
Documents Courtesy of Jim Ruland

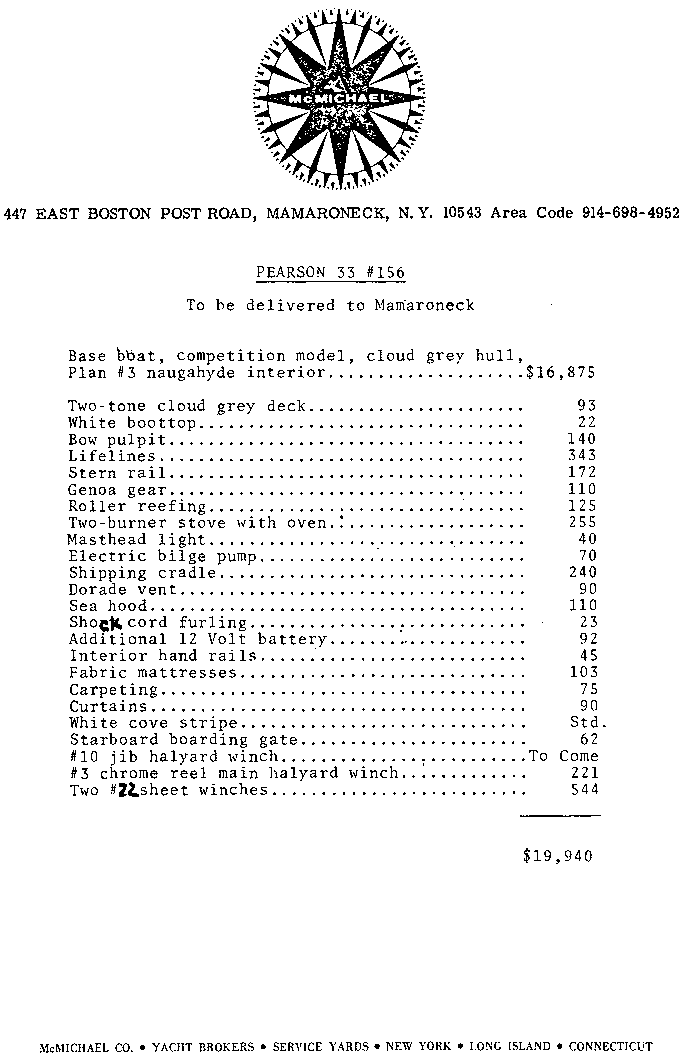

#156 Delivery Invoice

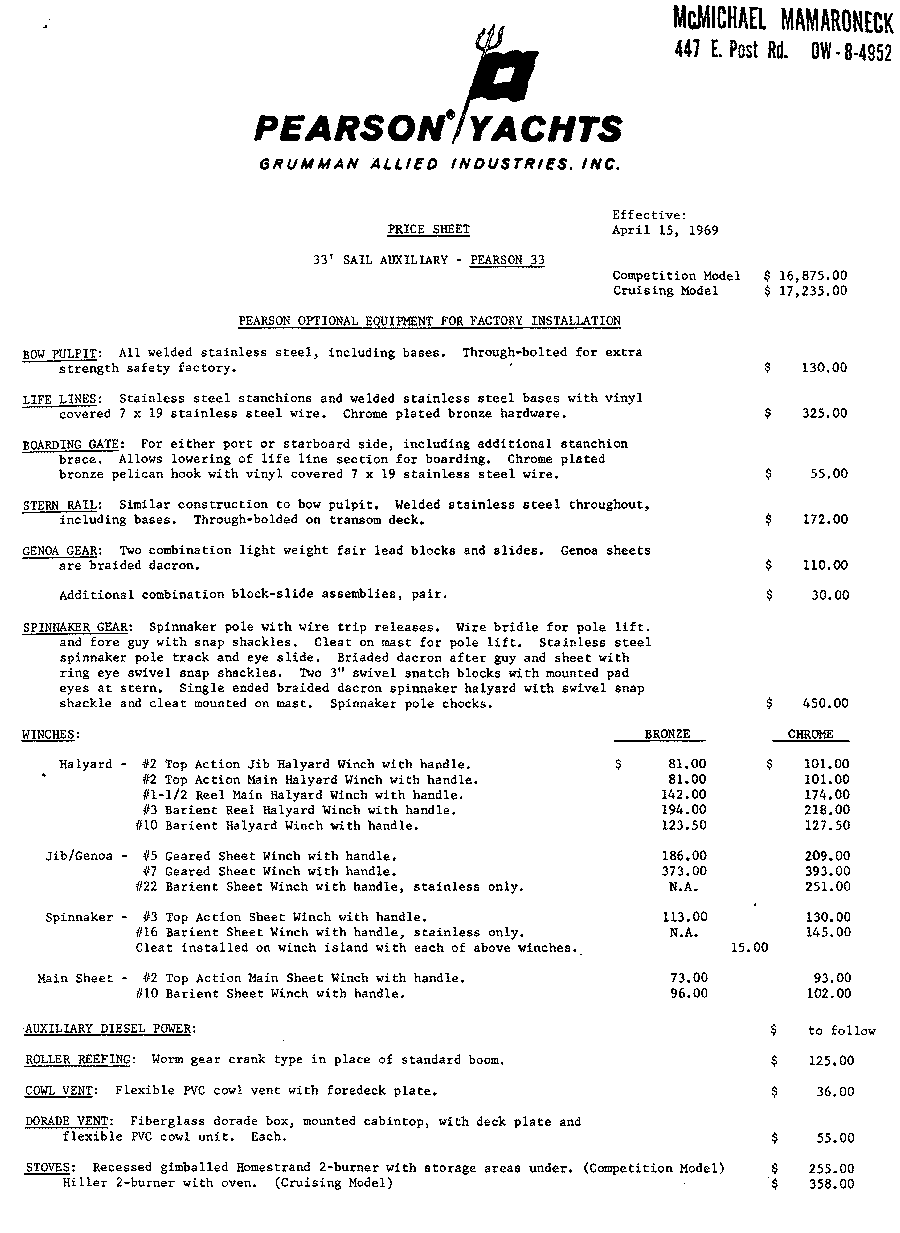

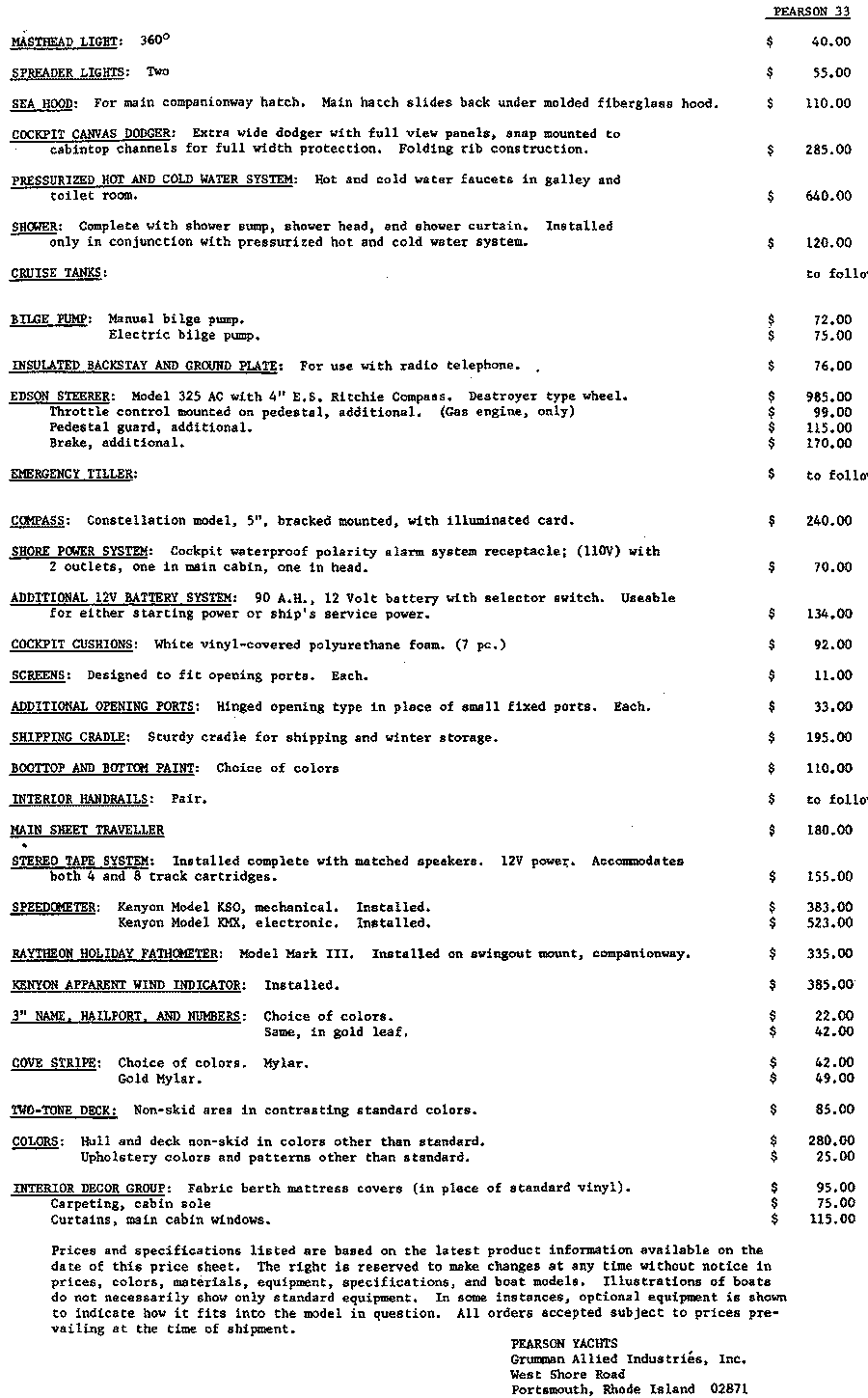

Price Sheet (Apr. 15, 1969) Page 1 | Page 2

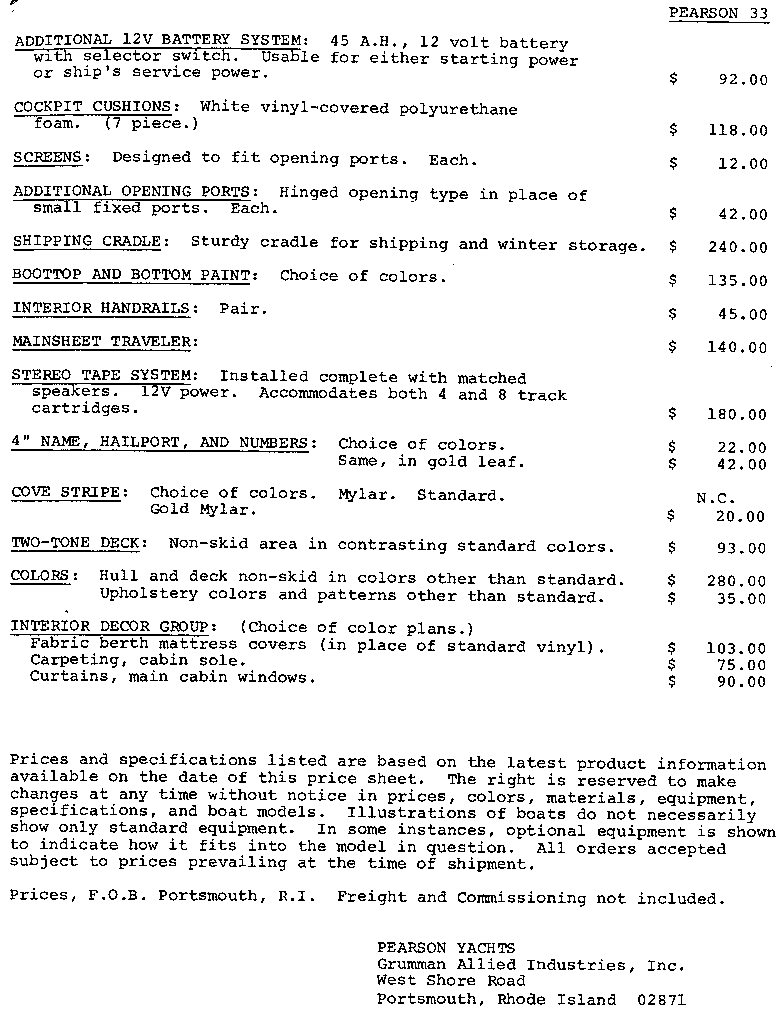

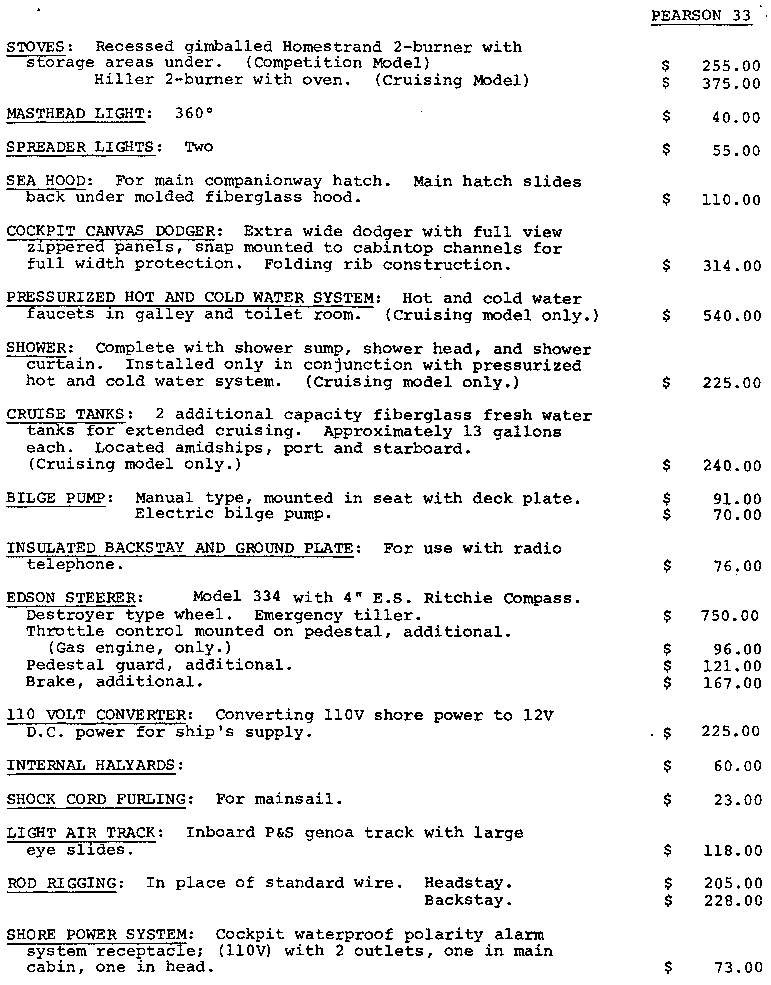

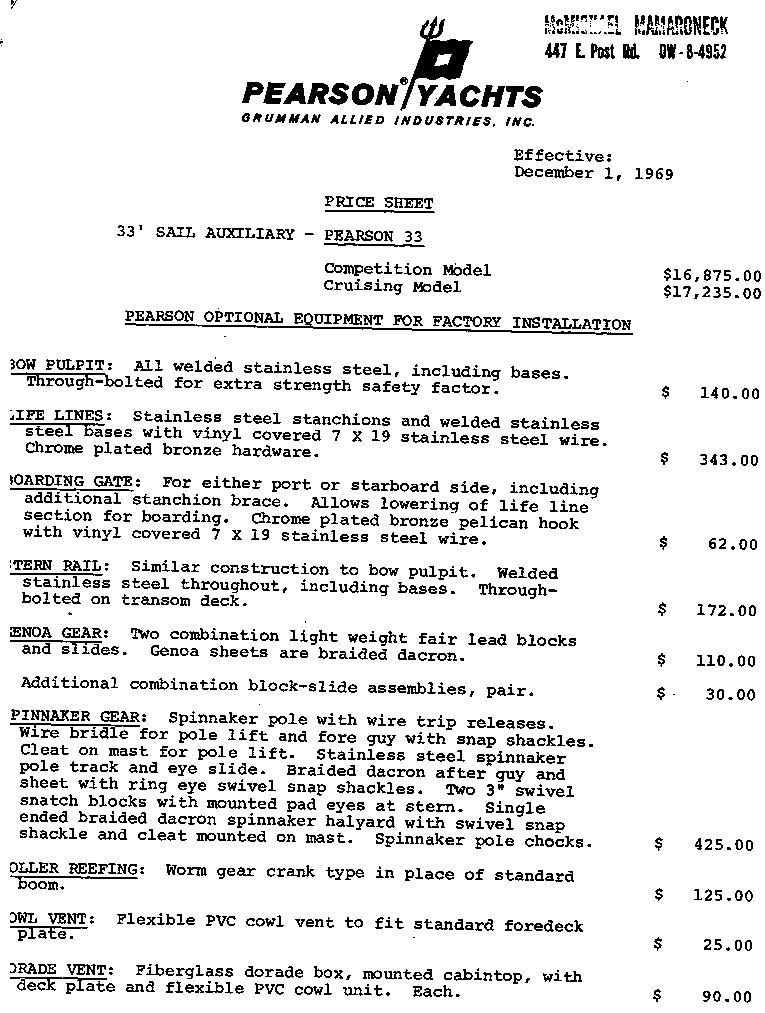

Price Sheet (Dec, 1969) Page 1 | Page 2 | Page 3

1969 with added bowsprit, boom gallows and roller furling boom
and a load of fun-loving NYC firefighers.
