1989-1991 P34-2
1991 Practical Sailor Article on P34 Rudder Problem

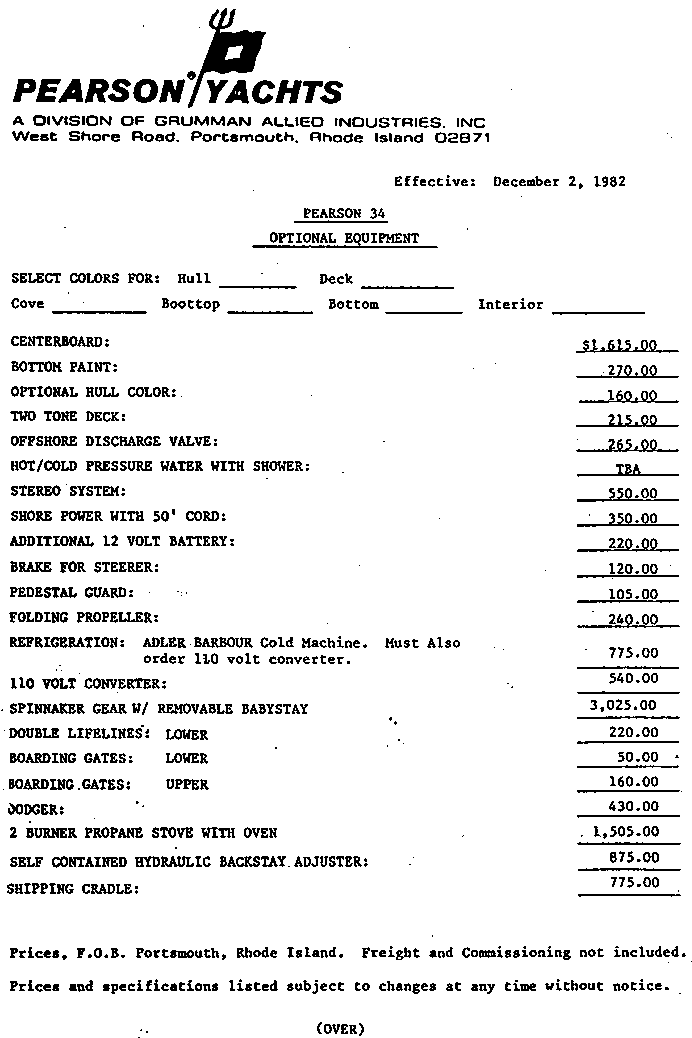

|| OEM Options (1982)

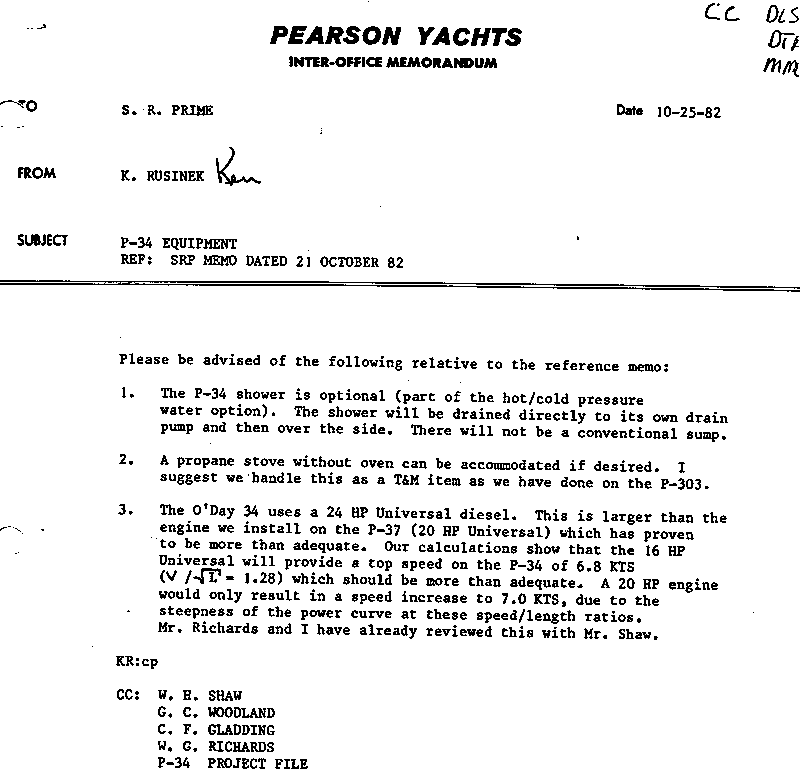

| Equipment Memo

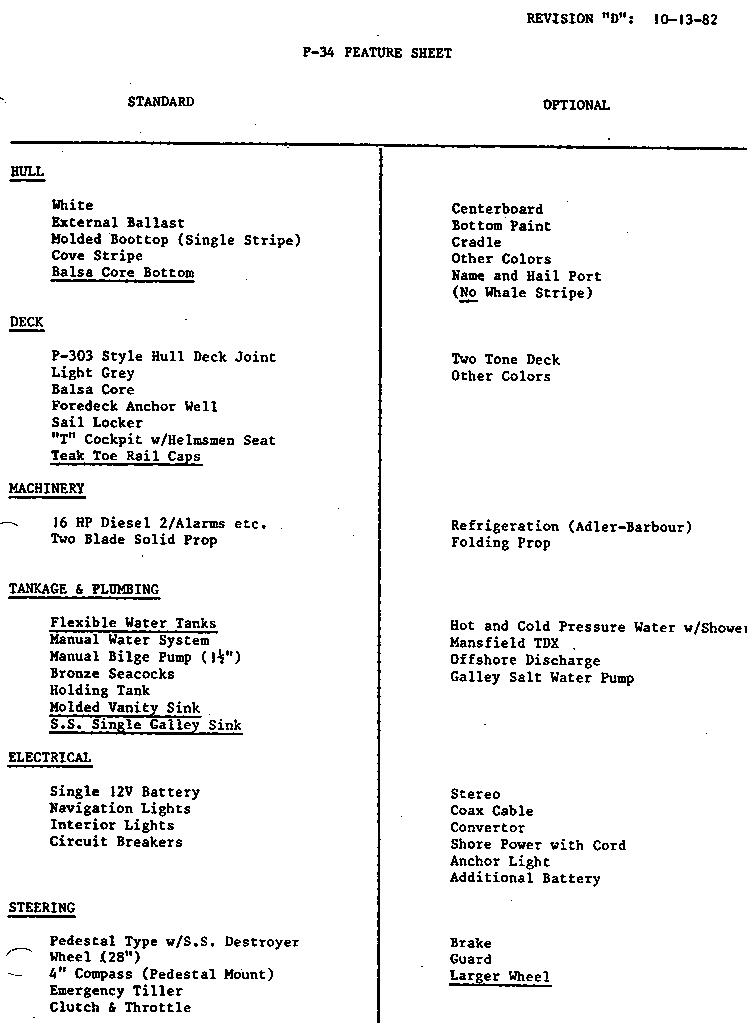

| Feature Sheet p1
| Feature Sheet p2

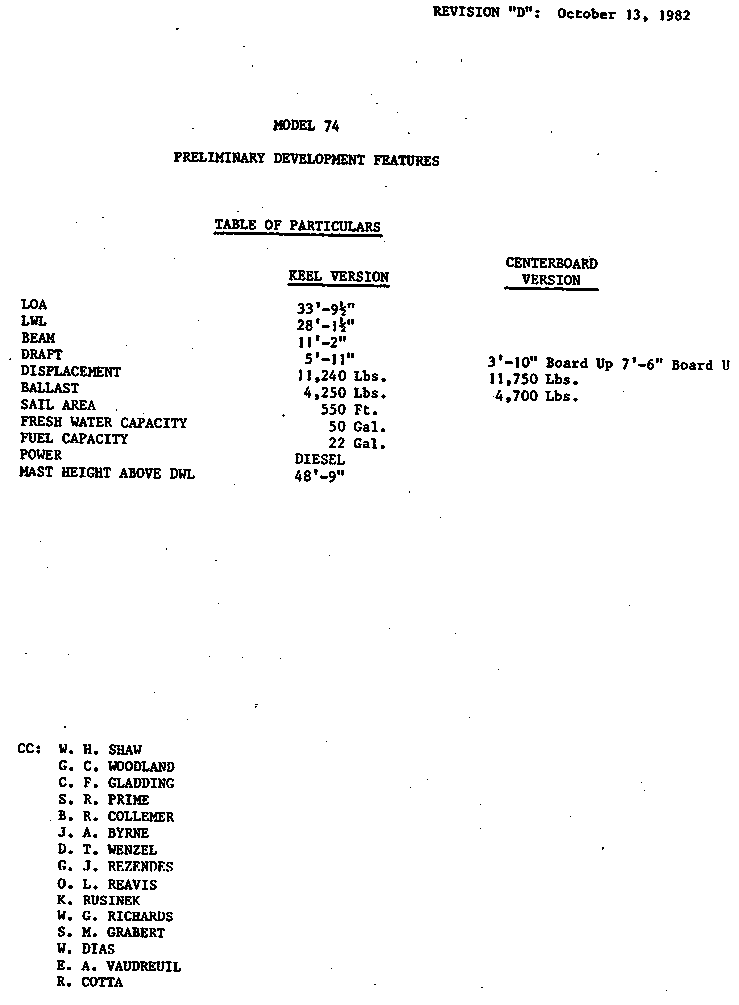

| Preliminary Development Features
||
P34 Manual (pdf) | P34 Drawings (pdf) (Scanned by David Short)
RUDDER

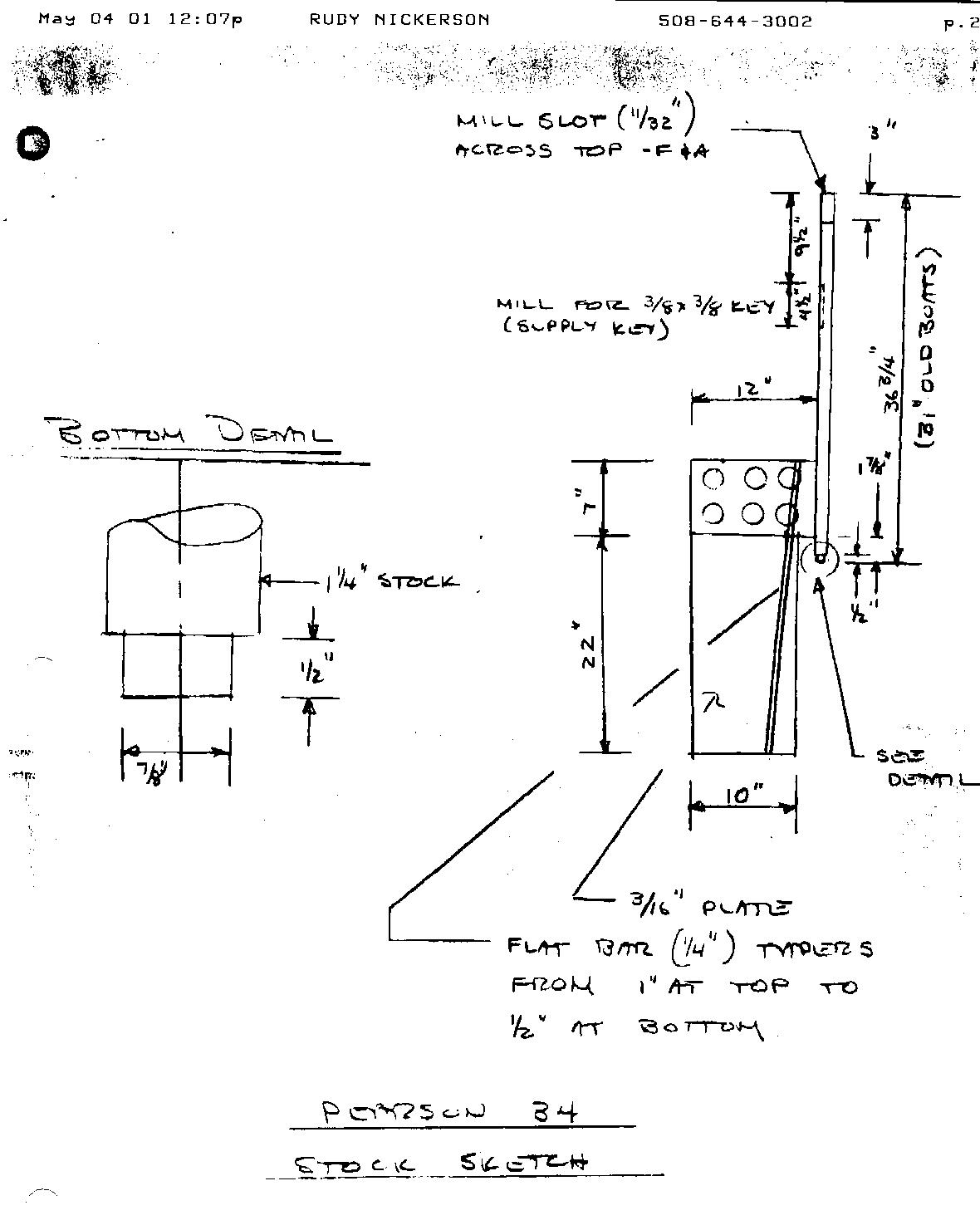

|| D&R rudder line drawing

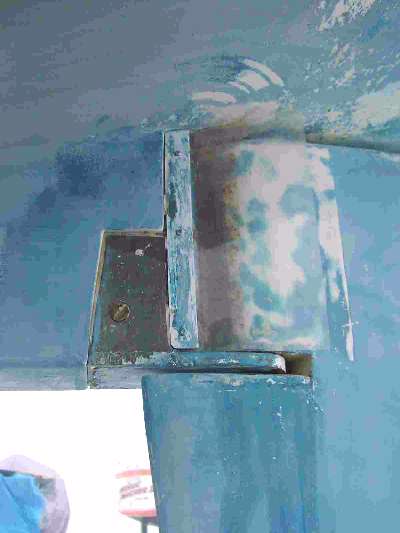

| Rudder Connection
| Replacing the rudder by Bob Brown
||
Designer Shaw Main Area 240 Hull Speed 7.11
Model # 74 For Tri 310 SA/D 17.5/17.0
First Year 1983 I 44.3 D/L 225/236
Last Year 1986 J 14.0 BR 38%/40%
LOA 33.8 P 38.4 L/B 3.04
LWL 28.1 E 12.5 LWL /B 2.53
Beam 11.1 Eng D OR 17%
Disp 11,200/11,750 Fuel 22 CSF 1.99/1.96
Draft 5.9/3.8-7.6 Water 50 MCR 23.4/24.4
Sail Area 550 M/F 0.77
Ballast 4250/4700 PHRF 150
Info on Design Ratios

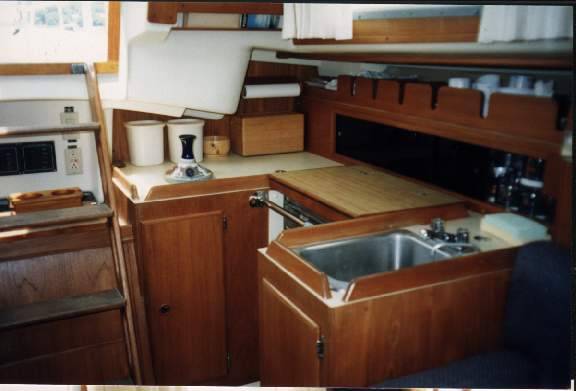

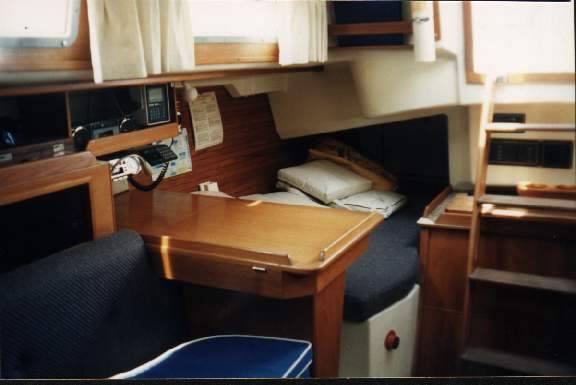

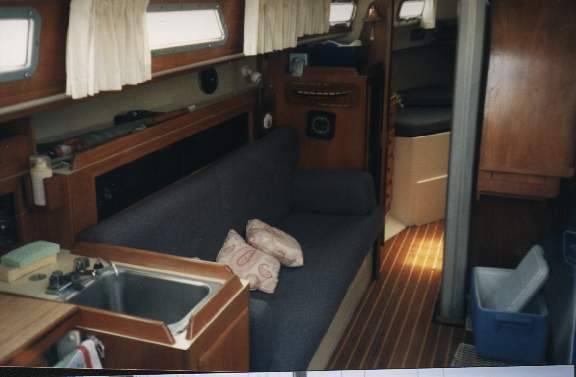

1984

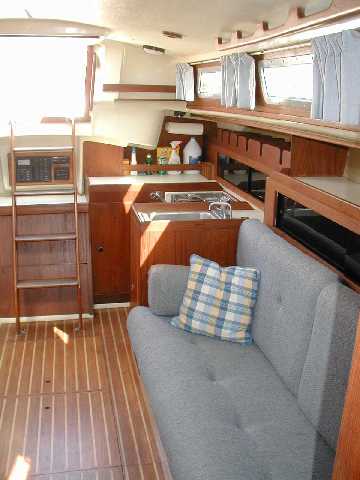

1984
