Pearson 424
Return to Pearson Info . . . | 422 | 424 | 43

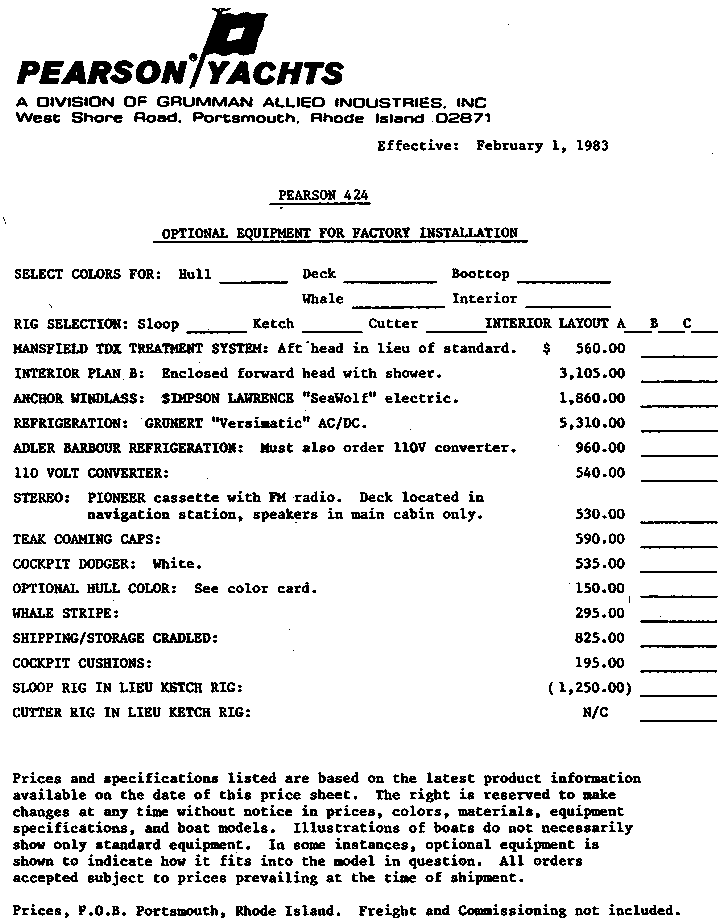

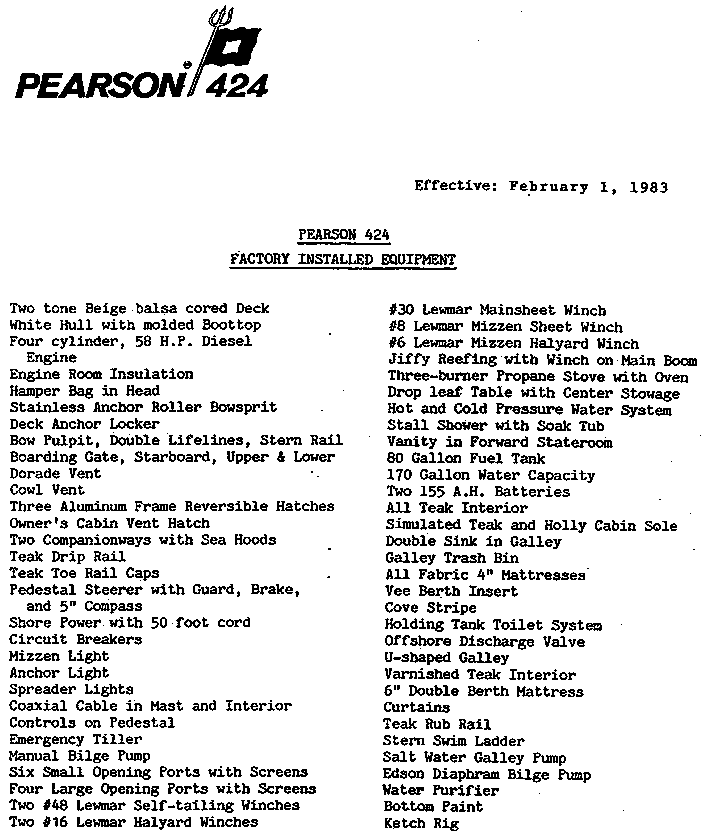

Brochure | OEM Equipment Sheet (1983) | OEM Option Sheet (1983)
2001 photos of the 424 molds...
Maintenance Notes
Boat        424   Main Area      281   Hull Speed  7.79
Designer   Shaw   For Tri        354   SA/D        15.2
Model #      58   I             44.9   D/L          243
First Year 1977   J             15.8   BR           36%
Last Year  1985   P             38.8   L/B         3.26
LOA        42.3   E             14.5   LWL /B      2.60
LWL        33.8   PY            23.0   OR           20%
Beam       13.0   EY             8.8   CSF         1.89
Disp     21,000   Eng              D   MCR         29.1
Draft       5.3   Fuel            80   M/F         0.79
Sail Area   723   Water          170   PHRF         168
Ballast   7,634   Mast Height   48.9
Info on Design Ratios
A letter from Bill Shaw decscribing the 390/419/424/422.

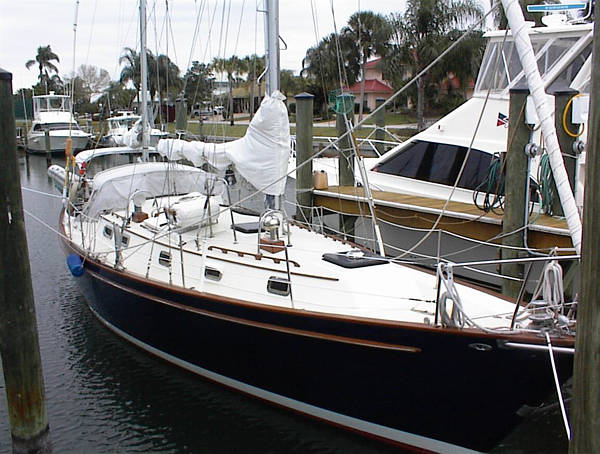

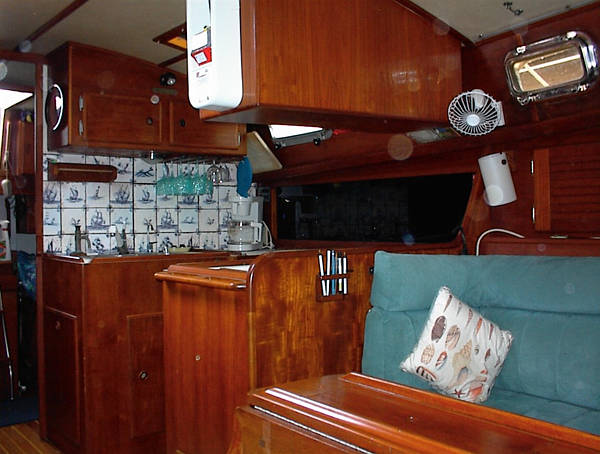

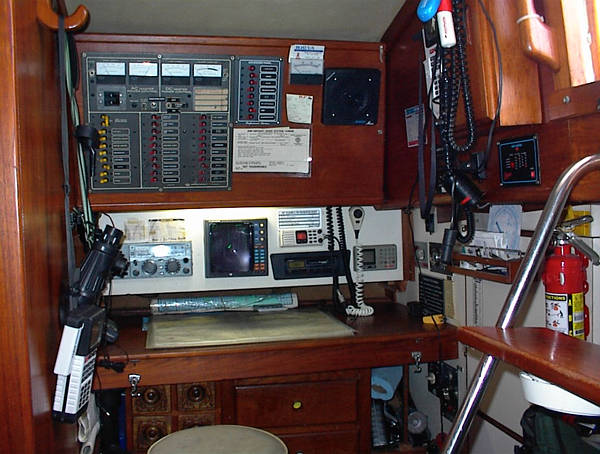

1981

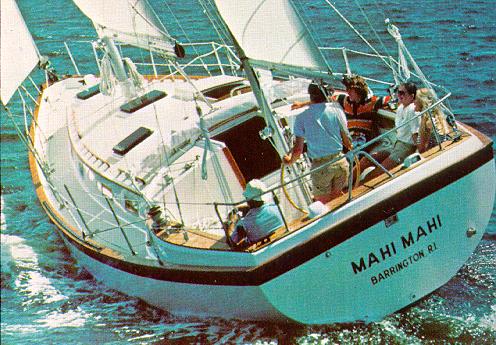

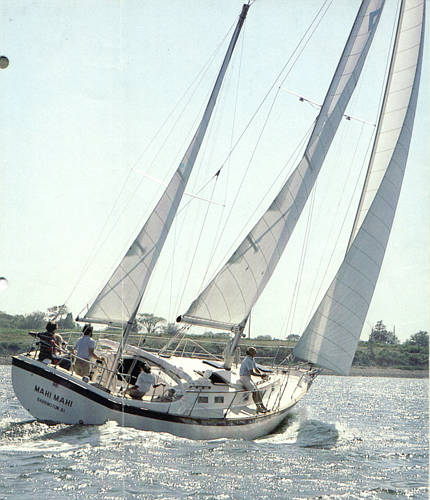

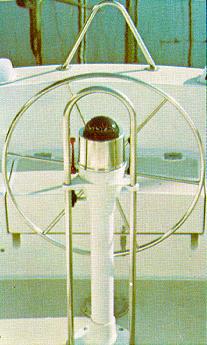

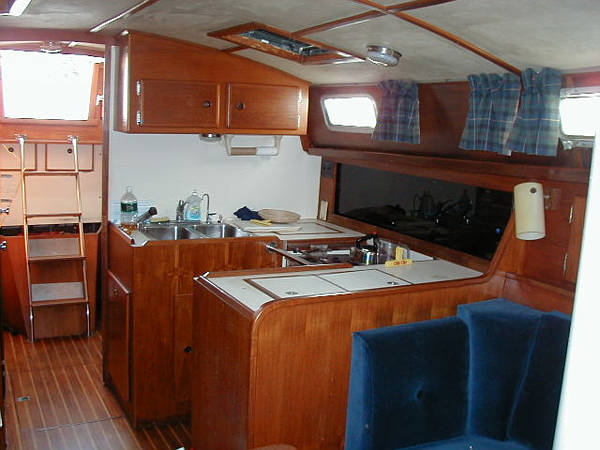

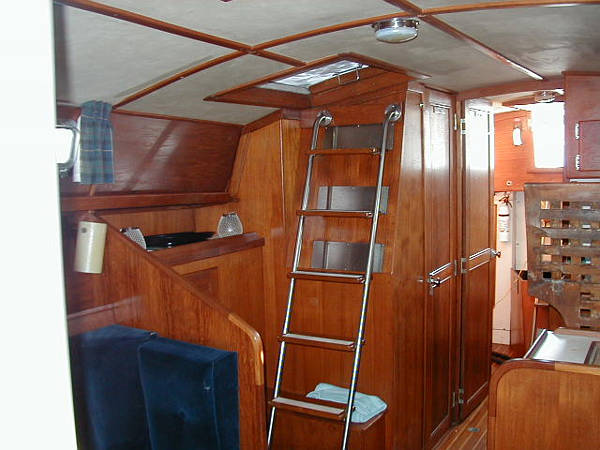

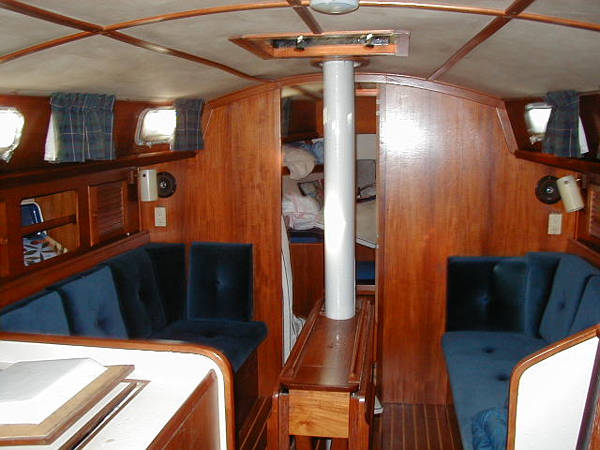

1982
