Designer    Shaw   Main Area   217   Hull Speed   6.47
First Year  1966   For Tri     204   SA/D         15.0
Last Year   1970   I          36.0   D/L           334
LOA         29.8   J          11.3   BR            37%
LWL         23.3   P          31.0   L/B          3.20
Beam         9.3   E          14.0   LWL /B       2.50
Disp       9,500   Eng          A4   OR            22%
Draft        4.6   Fuel         20   CSF          1.76
Sail Area    421   Water        24   MCR          29.4
Ballast    3,500                     M/F          1.06
                                     PHRF          219

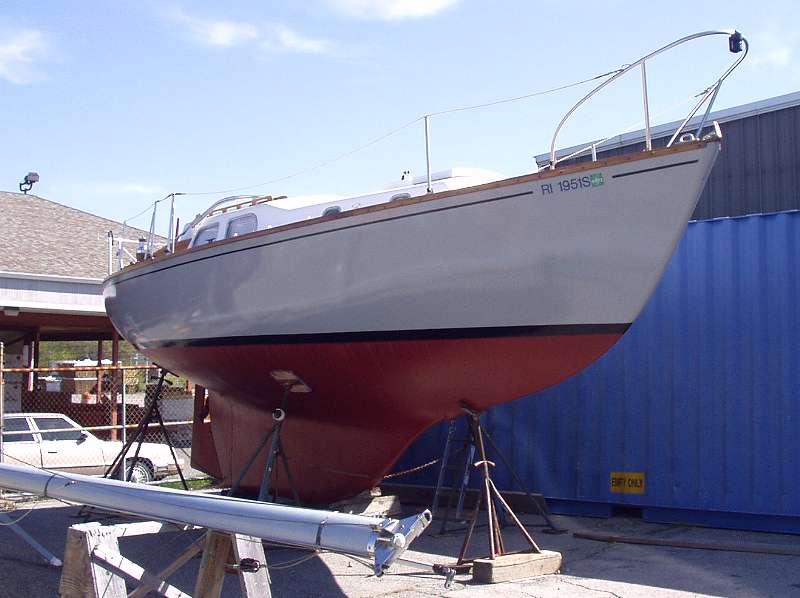

Above: A side view of the Coaster

Below: Cutaway drawing of a Coaster, Version B

Below: Version A of both yachts. In this configuration, there are settees on the port and starboard side, with the galley aft.

Below: Version B. A U-shaped dinette with the galley facing it.
