Pearson Ensign
Return to Pearson Info . . . | 22 | Ensign | Electra

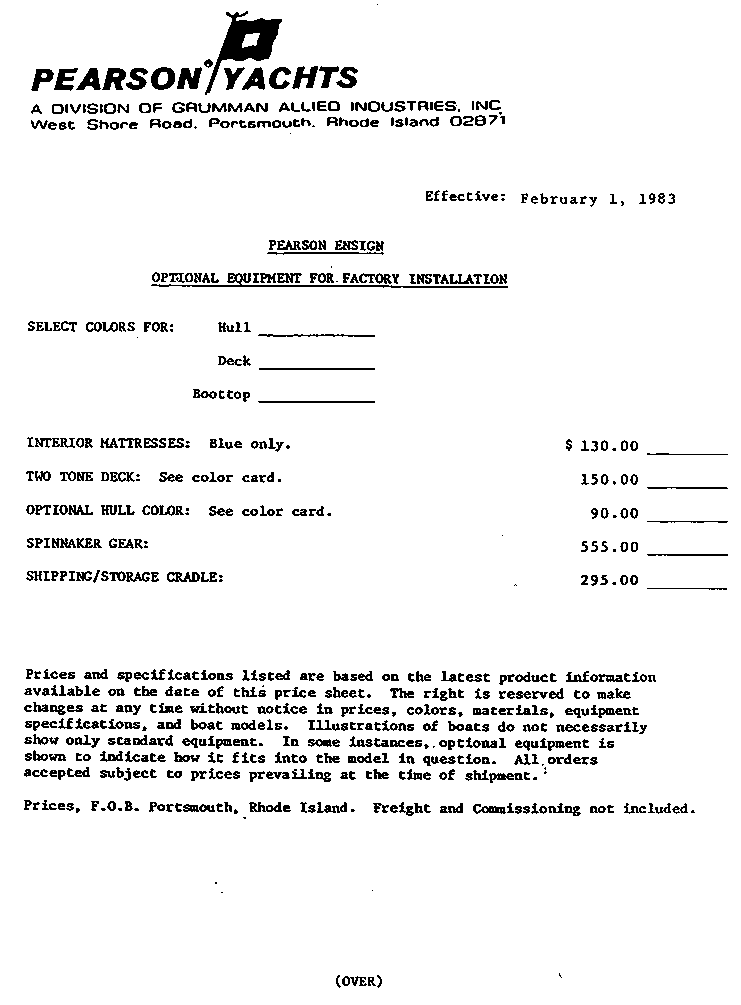

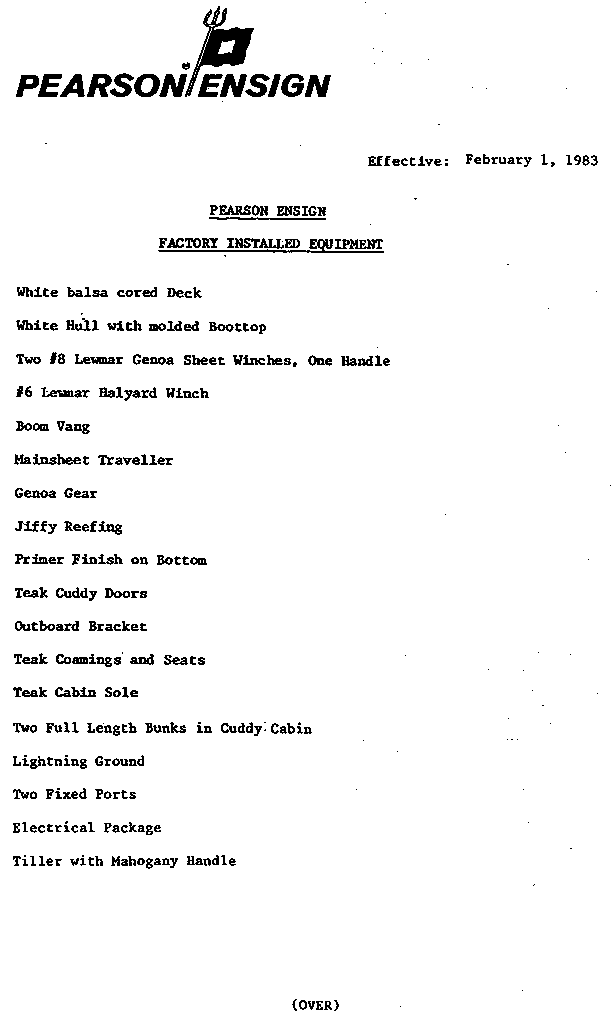

Brochure | OEM Equipment Sheet (1983) | OEM Option Sheet (1983)
Electra

Designer  Alberg   Main Area    151   Hull Speed  5.49
First Year  1962   For Tri       94   SA/D        18.8
Last Year   1985   I           25.0   D/L          282
LOA         22.5   J            7.5   BR           40%
LWL         16.8   P           25.4   L/B         3.21
Beam         7.0   E           11.9   LWL /B      2.40
Disp       3,000   Eng           OB   OR           25%
Draft        3.0   Mast Height 25.0   CSF         1.94
Sail Area    245   # Built     1776   MCR         18.6
Ballast    1,200                      M/F         1.61
                                      PHRF         276
Info on Design Ratios

From the Ensign Home Page

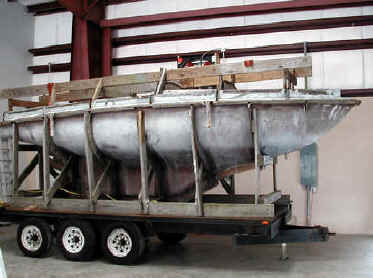

2002 Production photos
