The photos on this page show my N-gauge model railroad that I built inside a coffee table. I built the table with glass on all four sides and the top. The top hinges up and the glass on each side slides down for access to the train in the unlikely event of a derailment. The track is Kato Unitrack with powered turnouts (switches). There's 65 feet of track in the entire layout including the 6 track stub-end yard. There are two independant loops that connect together at a double crossing to form a folded figure eight. There is also a motorized turntable. All of the turnouts, the turntable and the lighting are controled from a panel that is connected to the table by a cable. I built two transistor throttle units (with pulse and momentum controls) into the control panel. The track is divided into four blocks each of which can be assigned to either throttle. All of the power supplies are inside the table.

Click on any of these images for an enlarged view.

A view of the table	The Coffee Table	The Table with the Train

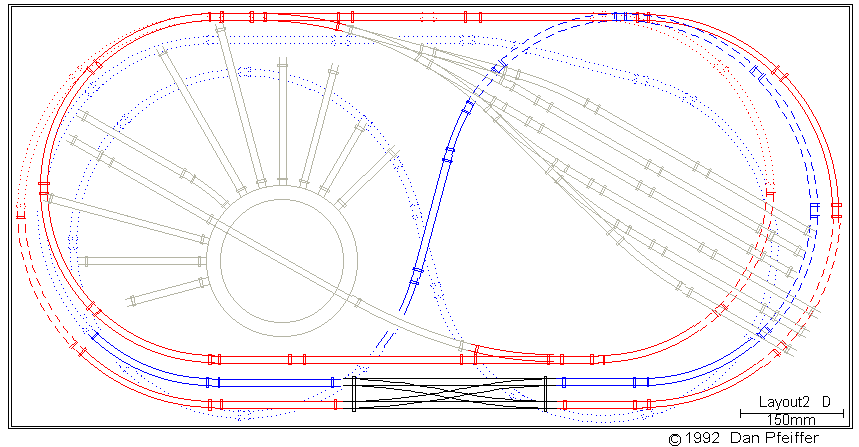

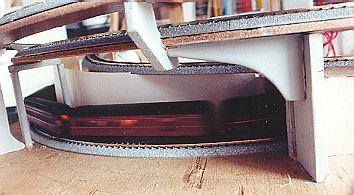

A Kato f7 and a Working Signal	A closeup of the lower level B track	Track Plan
The Engine Depot	Some Locomotives	Schematic of LED Bar Graph Volt Meter
Power Supplies	Some of the wiring	Schematic of Transistor Throttle

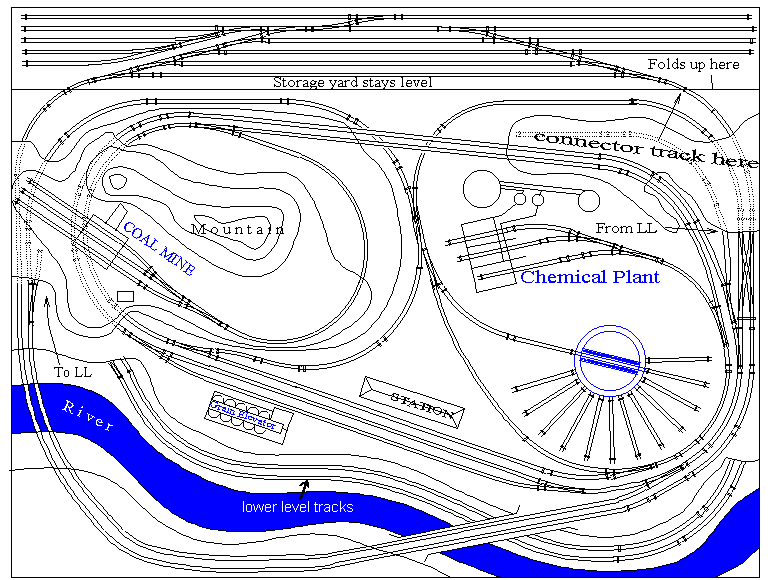

Folding Layout Idea...
Idea for wall cabinet	Track Plan Upper Level	Track Plan Lower Level

Track Section Parts List
Drawing showing roadbed heights in coffee table layout
