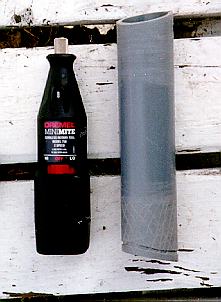

This is the PVC engine well drain I fabricated just before installation. The groove at the bottom of the tube was to lock it in place when it and a corresponding groove in the hole cut through the hull were filled with epoxy. I glassed the PVC in place on the inside with several layers of fiberglass. The drain works much better then the factory 1/2" tube which was perpetually clogged. (See Maintenance Log for 4/20/96 to 4/29/96)
