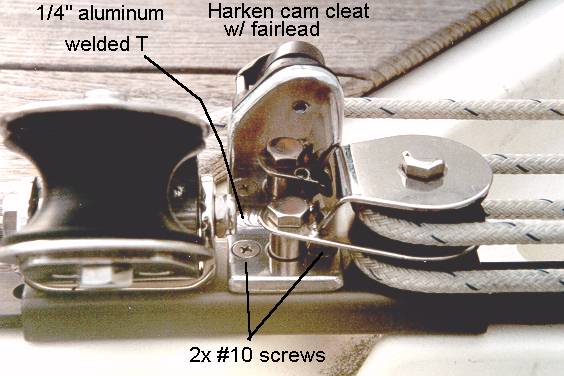

These photos show one of the Garhauer adjustable genoa lead cars with the Harken cam cleat on the custom bracket I made. The bracket had to be made to clear the coaming on the side deck at the front of the cockpit. The bracket is made of aluminum and is T-shaped. I cut and shaped the pieces by hand and welded them together to for the T. It bolts on to the car into holes I drilled and tapped. (See the Maintenance Log for 10/16/96-10/18/96 and the Ships Log for 10/25/96)

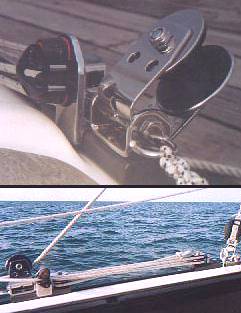

Another photo of the modified car
